SpinCat 125

Part #:SC-125-1.0
Are you a StoneAge Customer? Please sign in to continue.

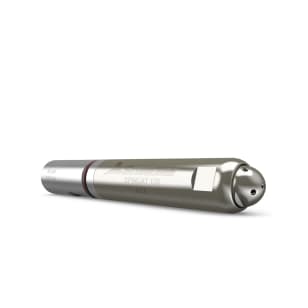

SpinCat 125

The SpinCat 125 provides well intervention teams with an advanced solution for 1 1/4" CT BHA's requiring a "slick" or Slimhole profile. Proven effective in wells with small ID restrictions, heavy scale deposition, and a history of entry challenges, the SC-125's smooth profile aids reaching target depths the first time then delivers powerful impact force and dwell time to enhance perf stimulation and clean-out objectives.

Features

  • Recessed head ensures rotation to continue when tool is against well bore wall and contributes to "slick" profile
  • Constructed of hardened stainless steel for strength, durability & chemical resistance
  • Effectively cuts scale in HCL acid clean-out jobs
  • Drilled head sized for nominal flow rates of .5 to 1.5 bpm
  • Viscous speed control
  • Field serviceable

Product Specifications

Length20.3 cm / 7.9 in
Weight2.0 lb / 0.9 kg
Pressure Range1000-5000 psi / 70-340 bar
Flow Range.5-1.5 bpm / 21-63 gpm
Inlet Connection7/8" AMMT
Diameter3.2 cm / 1.3 in
Compression (set down)Safe load - 12000 lbs / 5443 kg
Flow Rating2.3 Cv
Max. Water Temp392� F / 200� C
PSI Loss (@ 1 bpm)330 psi / 23 bar
Rotation Speed10-50 rpm
Tension (pull)Safe load - 8500 lbs / 3856 kg
